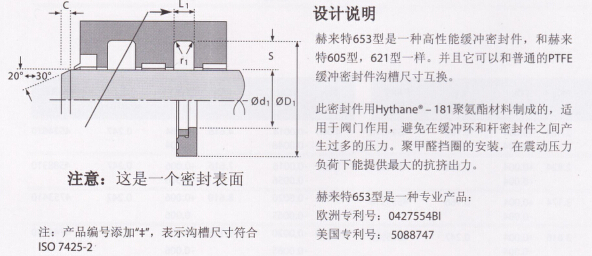

∅d1 |
∅D1 |
L1+0.25/-0 |
PART NO. |
|
40.0 |
55.5 |
6.3 |
4772710 |
|
45.0 |
56.0 |
4.2 |
4575510# |
|
45.0 |
60.5 |
6.3 |
4772810 |
|
50.0 |
65.5 |
6.3 |
4403210 |
|
55.0 |
70.5 |
6.3 |
4403310 |
|
60.0 |
75.5 |
6.3 |
4403410 |
|
63.0 |
78.5 |
6.3 |
4751110# |
|
65.0 |
80.5 |
6.3 |
4742110 |
|
70.0 |
85.5 |
6.3 |
4742310# |
|
75.0 |
90.5 |
6.3 |
4742410 |
|
80.0 |
95.5 |
6.3 |
4742510# |
|
85.0 |
100.5 |
6.3 |
4742610 |
|
90.0 |
105.5 |
6.3 |
4523710# |
|
95.0 |
110.5 |
6.3 |
4742810 |
|
100.0 |
115.5 |
6.3 |
4742910# |
|
110.0 |
125.5 |
6.3 |
4743010# |
|
140.0 |
155.5 |
6.3 |
4770810# |
|
215.0 |
236.0 |
8.1 |
4705710 |
|
∅d1 |
∅D1 |
L1+0.010/-0 |
PART NO. |
|
2.000 |
2.424 |
0.166 |
4521310 |
|
2.500 |
2.924 |
0.166 |
4514610 |
|
2.750 |
3.174 |
0.166 |
4533510 |
|
3.000 |
3.616 |
0.247 |
4515910 |
|
3.500 |
4.116 |
0.247 |
4514810 |
|
4.000 |
4.616 |
0.247 |
4524610 |
|
7.000 |
7.616 |
0.247 |
4588310 |
|
8.000 |
8.610 |
0.247 |
4753410 |
|
8.500 |
9.116 |
0.247 |
4744810 |
|
12.000 |
12.950 |
0.319 |
4764910 | |
|
|
