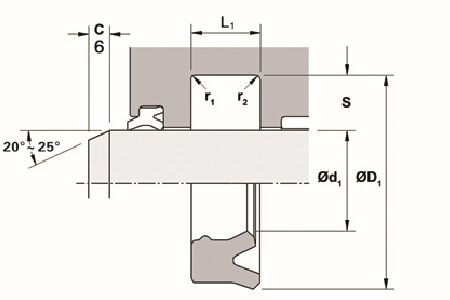

∅d1 |
∅D1 |
L1+0.2/-0 |
零件号码 Part No. |
|
80 |
90 |
11.0 |
4847404 |
|
85 |
95 |
12.5 |
4847604 |
|
90 |
100 |
12.5 |
4847704 |
|
95 |
105 |
12.5 |
4847004 |
|
100 |
110 |
11.0 |
4847504 |
|
100 |
110 |
12.5 |
4840504 |
|
100 |
110 |
13.5 |
4841504 |
|
100 |
112 |
12.0 |
4839704 |
|
105 |
115 |
12.5 |
4854604 |
|
110 |
120 |
11.0 |
4842204 |
|
110 |
120 |
12.5 |
4847804 |
|
115 |
125 |
12.5 |
4848104 |
|
120 |
130 |
12.5 |
4840604 |
|
125 |
135 |
11.0 |
4843604 |
|
125 |
135 |
13.5 |
4841604 |
|
125 |
137 |
12.0 |
4839804 |
|
129 |
139 |
11.0 |
4842304 |
|
130 |
140 |
12.5 |
4853904 |
|
135 |
145 |
12.5 |
4847904 |
|
140 |
150 |
12.5 |
4848404 |
|
145 |
155 |
12.5 |
4840704 |
|
150 |
160 |
13.5 |
4841704 |
|
150 |
162 |
12.0 |
4839904 |
|
152 |
162 |
12.5 |
4854004 |
|
155 |
165 |
12.5 |
4848304 |
|
160 |
170 |
12.5 |
4848004 |
|
162 |
172 |
12.5 |
4860404 |
|
165 |
175 |
12.5 |
4854704 |
|
170 |
180 |
12.5 |
4840804 |
|
172 |
183 |
13.5 |
4842404 |
|
175 |
185 |
12.5 |
4854104 |
|
180 |
190 |
13.5 |
4841804 |
|
180 |
192 |
12.0 |
4840004 |
|
182 |
192 |
12.5 |
4848504 |
|
185 |
195 |
12.5 |
4848904 |
|
195 |
205 |
12.5 |
4840904 |
|
196 |
207 |
13.5 |
4842504 |
|
210 |
222 |
13.5 |
4849004 |
|
200 |
210 |
13.5 |
4859904 | |
|
|
