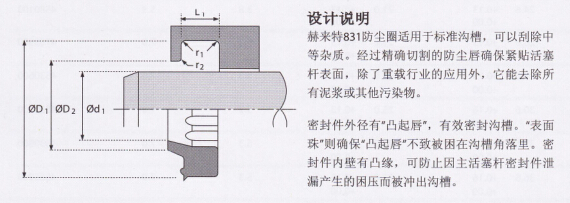

∅d1 |
∅D1 |
∅D2 |
L1+0.2-0 |
L2 |
PART NO. |
|
12 |
18.6 |
15.0 |
3.8 |
5.3 |
4565800 |
|
14 |
20.6 |
17.0 |
3.8 |
5.3 |
4580000 |
|
16 |
24.6 |
19.0 |
5.3 |
7.0 |
4703800 |
|
18 |
24.6 |
21.0 |
3.8 |
5.3 |
4580100 |
|
18 |
26.6 |
21.0 |
5.3 |
7.0 |
4703900 |
|
20 |
28.6 |
23.0 |
5.3 |
7.0 |
4530600 |
|
22 |
30.6 |
25.0 |
5.3 |
7.0 |
4530700 |
|
25 |
33.6 |
28.0 |
5.3 |
7.0 |
4530800 |
|
28 |
36.6 |
31.0 |
5.3 |
7.0 |
4565900 |
|
30 |
38.6 |
33.0 |
5.3 |
7.0 |
4530900 |
|
32 |
40.6 |
35.0 |
5.3 |
7.0 |
4534500 |
|
35 |
43.6 |
38.0 |
5.3 |
7.0 |
4531000 |
|
36 |
44.6 |
39.0 |
5.3 |
7.0 |
4580200 |
|
38 |
46.6 |
41.0 |
5.3 |
7.0 |
4788300 |
|
40 |
48.6 |
43.0 |
5.3 |
7.0 |
4531100 |
|
42 |
50.6 |
45.0 |
5.3 |
7.0 |
4788400 |
|
45 |
53.6 |
48.0 |
5.3 |
7.0 |
4533800 |
|
45 |
55.6 |
48.0 |
5.3 |
7.0 |
4531200 |
|
47 |
55.6 |
50.0 |
5.3 |
7.0 |
4778100 |
|
50 |
58.6 |
53.0 |
5.3 |
7.0 |
4533900 |
|
50 |
60.6 |
53.0 |
5.3 |
7.0 |
4531300 |
|
55 |
63.6 |
58.0 |
5.3 |
7.0 |
4534000 |
|
55 |
65.6 |
58.0 |
5.3 |
7.0 |
4531400 |
|
56 |
64.6 |
59.0 |
5.3 |
7.0 |
4566000 |
|
56 |
66.6 |
59.0 |
5.3 |
7.0 |
4704000 |
|
60 |
68.6 |
63.0 |
5.3 |
7.0 |
4534100 |
|
60 |
70.6 |
63.0 |
5.3 |
7.0 |
4531500 |
|
70 |
78.6 |
73.0 |
5.3 |
7.0 |
4534200 |
|
70 |
80.6 |
73.0 |
5.3 |
7.0 |
4531600 |
|
80 |
88.6 |
83.0 |
5.3 |
7.0 |
4534300 |
|
80 |
92.2 |
86.0 |
7.1 |
12.0 |
4531700 |
|
85 |
93.6 |
88.0 |
5.3 |
7.0 |
4534400 |
|
85 |
97.2 |
91.0 |
7.1 |
12.0 |
4531800 |
|
90 |
102.2 |
96.0 |
7.1 |
12.0 |
4531900 |
|
100 |
112.2 |
106.0 |
7.1 |
12.0 |
4532000 |
|
110 |
122.2 |
116.0 |
7.1 |
12.0 |
4538200 |
|
135 |
147.2 |
141.0 |
7.1 |
12.0 |
4538100 | |
|
|
