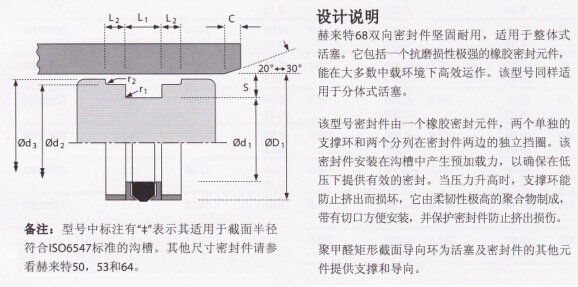

∅D1 |
∅d1 |
∅d2 |
∅d3 |
L1+0.35+0.1 |
L2 +0.1-0 |
PART NO. |
|
25 |
15 |
22.0 |
24.0 |
12.50 |
4.0 |
6594610# |
|
32 |
22 |
29.0 |
31.0 |
12.50 |
4.0 |
2249320# |
|
40 |
30 |
37.0 |
39.0 |
12.50 |
4.0 |
2249420# |
|
50 |
35 |
46.0 |
48.5 |
20.00 |
5.0 |
0074020# |
|
63 |
48 |
59.0 |
61.5 |
20.00 |
5.0 |
6594710# |
|
80 |
60 |
75.0 |
78.0 |
25.00 |
6.3 |
0073830# |
|
100 |
80 |
95.0 |
98.0 |
25.00 |
6.3 |
0083620# |
|
125 |
100 |
119.0 |
123.0 |
32.00 |
10.0 |
0087540# |
|
160 |
135 |
154.0 |
158.0 |
32.00 |
10.0 |
0089930# |
|
200 |
170 |
192.0 |
197.0 |
36.00 |
12.5 |
1270120# |
|
250 |
220 |
242.0 |
247.0 |
36.00 |
12.5 |
1264320# | |
|
|
