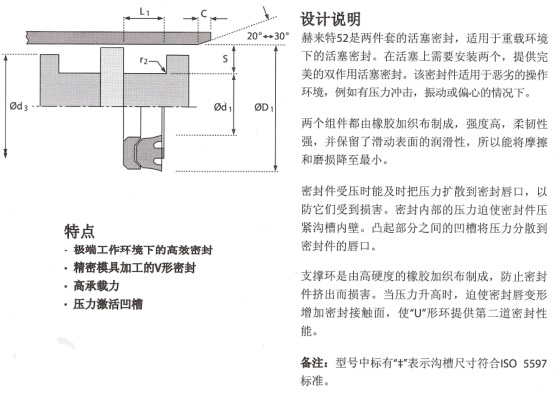

∅D1 |
∅d1 |
∅d3+0-0.3 |
L1+0.3-0 |
PART NO. |
|
25 |
15 |
24.0 |
6.30 |
6619810# |
|
32 |
20 |
31.0 |
7.80 |
1791610 |
|
32 |
22 |
31.0 |
6.30 |
6619910# |
|
40 |
25 |
39.0 |
10.00 |
2149810 |
|
40 |
30 |
39.0 |
6.30 |
6620010# |
|
45 |
30 |
44.0 |
10.00 |
2150010 |
|
50 |
35 |
49.0 |
9.50 |
2150210# |
|
55 |
40 |
54.0 |
10.00 |
215041 |
|
60 |
45 |
59.0 |
10.00 |
2150610 |
|
63 |
48 |
62.0 |
9.50 |
2150810# |
|
70 |
50 |
68.5 |
13.00 |
2151010 |
|
80 |
60 |
78.5 |
12.50 |
2151210# |
|
90 |
70 |
88.5 |
13.00 |
2151410 |
|
100 |
80 |
98.5 |
12.50 |
2151610# |
|
110 |
90 |
108.5 |
13.00 |
2151810 |
|
125 |
100 |
123.5 |
16.00 |
2152010# |
|
140 |
115 |
138.5 |
16.20 |
2152210 |
|
160 |
130 |
158.0 |
19.80 |
2152410 |
|
160 |
135 |
158.0 |
16.00 |
6620110# |
|
180 |
150 |
178.0 |
19.80 |
2152610 |
|
200 |
170 |
198.0 |
20.00 |
2152810# |
|
225 |
195 |
223.0 |
19.80 |
2197010 |
|
250 |
220 |
248.0 |
20.00 |
2197210# |
|
275 |
245 |
273.0 |
19.80 |
2197410 |
|
300 |
270 |
298.0 |
19.80 |
2188310 | |
|
|
